SQL Joins
In a Relational Databases (RDBMS) joins are a important part of the game. For example - we cannot store all the data in one table only, which will be a very bad structure. Hence data is stored in multiple tables and we can use joins to bring them together
There are FOUR types of JOINS , please see examples for each of them below.

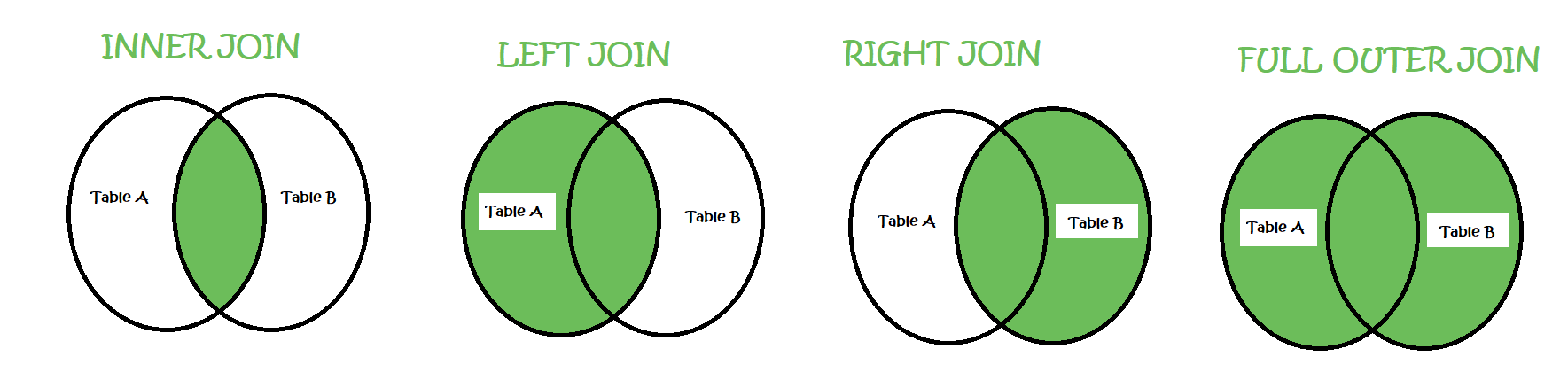

Venn Diagram to Understand the Joins
Data which is returned is represented in color Green
For Examples we will be Joining two tables from Adventurework2012 databases, created for this purpose
LEFT TABLE :: [AdventureWorks2012].[Person].[Person_Temp] - 10000 records
RIGHT TABLE ::[AdventureWorks2012].[Person].[Password_Temp]- 15000 records
Inner JOIN
Left JOIN
Right JOIN
Full Outer JOIN

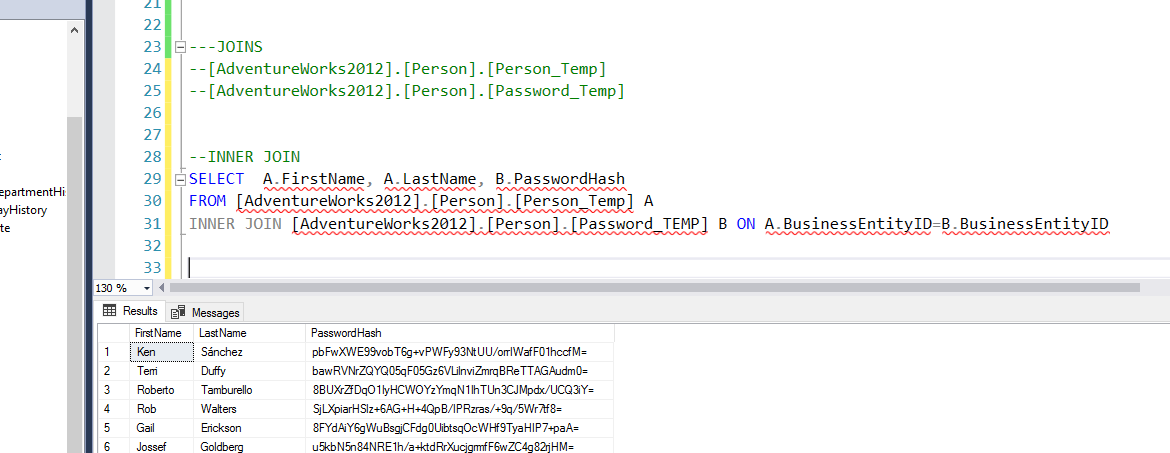

[INNER] JOIN
This join returns data if the records are in both the tables, I.e. if a person has data in Table A and Table B
This returns only 10000 records

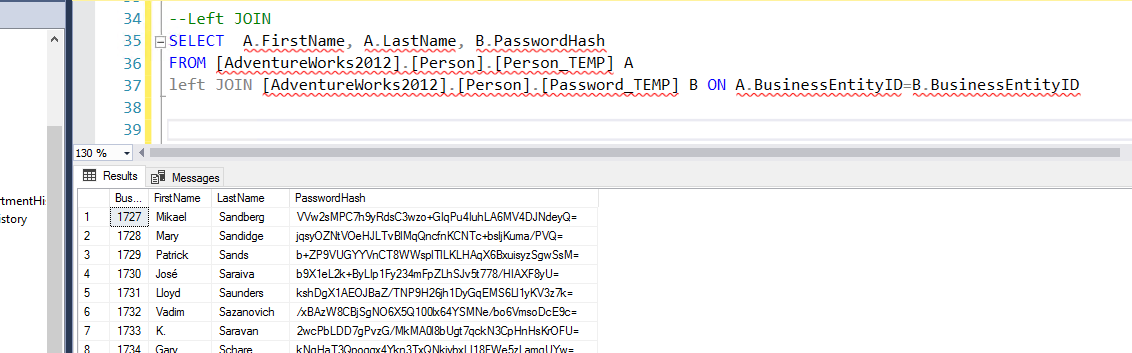

LEFT [OUTER] JOIN
This join returns data for all persons in the Left table- which is the from table, I.e. if a person has data in Table A , irrespective of Table B
This returns only 10000 records

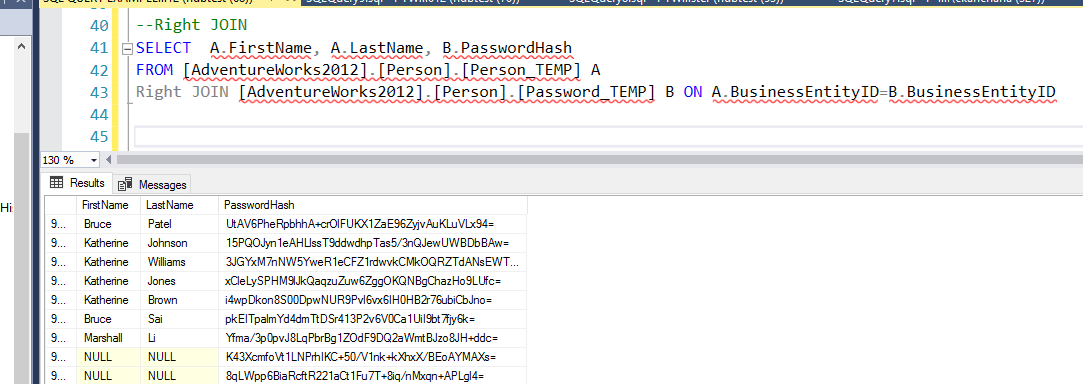

RIGHT [OUTER] JOIN
This join returns data for all persons in the Right table- which is the JOIN table, I.e. if a person has data in Table B , irrespective of Table A
This returns 15000 records

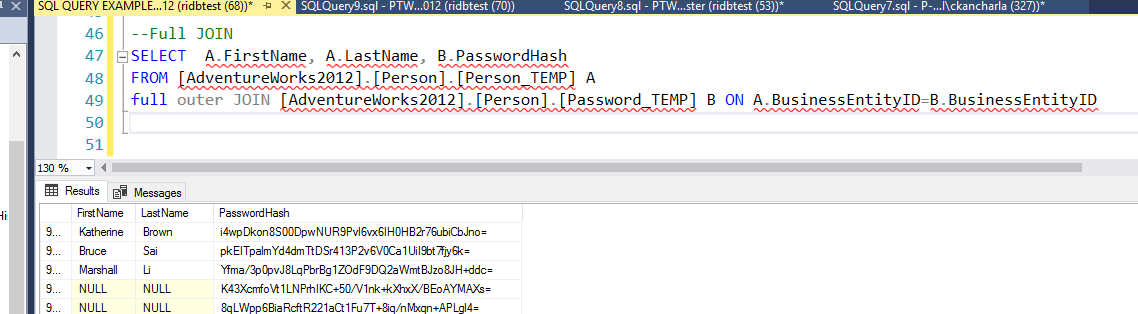

FULL [OUTER] JOIN
This join returns data for all persons in the BOTH tables I.e. if a person has data in Table B or in Table A
This returns 15000 records
